Primrose Lamp Repair

This lovely little lamp had a tussle with a curious cat and came out of it with 5 cracked pieces.  Below, with photos and narrative, is the story of its repair.  (Click on any photo to enlarge).

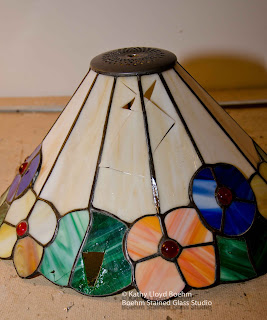

Seen here are 3 cracked amber pieces and two green pieces below them.

The first step is to score one of the broken pieces with a glass cutter.  Here I'm using a pistol grip cutter to the inside of the lamp.  I keep tapping on the glass until pieces start to break out.  Sometimes both sides needs to be scored.

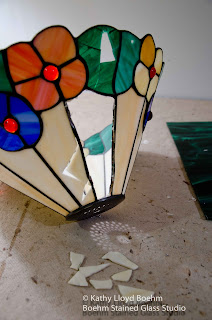

At this point, all the cracked glass in the one segment has been cracked out.

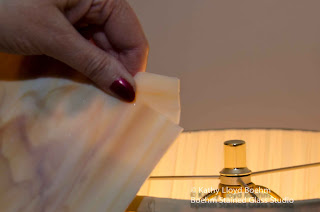

Here I'm assessing the luminosity of the broken out piece, to choose the best match for the replacement glass.  Spectrum light amber with white was the match, which I had in my inventory.

Here I'm using needle-nose pliers to pull off the old solder.  Sometimes the adhesive is so old it will come off very easily.  Other times, it needs some encouragement.

Above I'm using a hot soldering iron to help melt off the remaining old foil and solder.

At this point, I've made two manila folder patterns by tracing the openings in the now-missing pieces.  I've taped them to the inside of the lamp, to assure that the glass cut from them will be a good fit.  Manila folders are a great weight for patterns.  I always have some on hand.

Aside from matching the glass correctly, its important to use the same width of copper foil that was used on the original lamp.  See above that 3/16th" is the correct size for this project.  (Top piece was removed from the lamp).

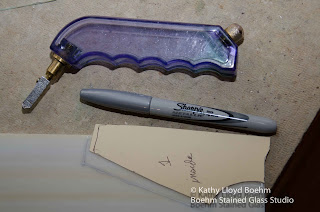

Above are my pistol grip cutter, silver Sharpie (black would work just as well) and the outlined piece of glass using the pattern made from an old manila folder.

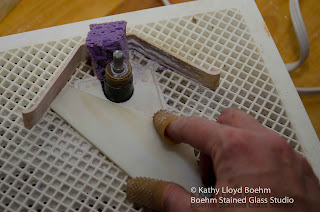

After cutting each piece, it gets grinded on all sides with the electric grinder.  The purple sponge is wicking up water from the reservoir at the base of the cutting surface.  The spinning grinder must be kept wet.  I'm wearing rubber finger protectors, available at Staples, to protect myself from cuts and to keep a firm grip on the glass.

After the new piece is cut, grinded, rinsed and dried, adhesive copper foil is applied to the center of the entire outer edge.  Here I'm using a plastic wand or "fid" to press the copper onto the glass on all sides.

The first piece of glass (on the right) has been replaced.  Here, I'm holding the second pattern in place to assure a good fit.

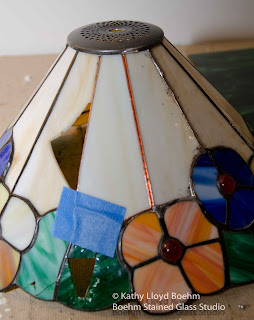

And now the second panel has been replaced and is ready for soldering.  Notice that I've added blue tape to the bottom edge.  I won't solder that edge yet, since that dark green piece will be removed.  It will be easier to remove it if it is not soldered to the neighboring piece.

Now the second piece has been soldered and I've cracked out the third piece.  Note that I"m keeping the blue tape there as a reminder not to solder that bottom edge.  The light green piece is also cracked and will be removed shortly.

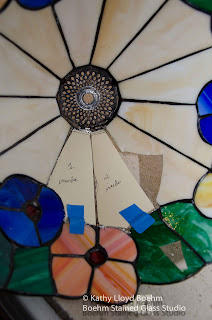

Here's the view inside the dome, with two amber pieces replaced and a pattern piece resting in the spot where the third piece will go.  Again, I'm just re-fitting for size before I cut the glass.

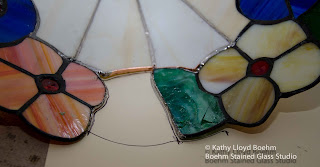

Now all three amber pieces have been replaced and I'm working on the darker green piece on the left.  Notice that I've outlined the outer edge of the piece as a guide.  I did the same on the piece to the right, making two patterns, cutting two piece of glass and soldering both of them in place.

When all the soldering is completed, the entire window gets washed with powdered soap and an old dish brush.  Then its allowed to dry completely.

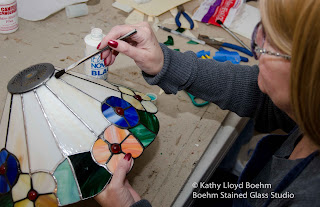

At this stage, the lamp is fully dried and soldered.  I'm now applying Novacan Black Patina with a craft brush to the solder lines.  This product reacts with the solder, turning it black instantly.  After letting the patina sit for a while, I rinsed the lamp in cool water and let it dry completely.  Then I applied Stained Glass Finishing Compound to the entire window, inside and out.  This Compound is similar to a light car wax and serves to bring out the shine in the glass and protect the patina and the solder.

And here is the result!  The owners of the lamp were very happy with the results.  Thank you, Frank and Cookie!  It was a pleasure repairing this for you.
